B Type Form Tie System

B Type Form Tie System is widely used in the construction industry, as it is fast and easy to assemble and remove.This system prevents formwork breakage and maintains the shape integrity of concrete structures. It can also reduce construction costs, since all components are reusable except for the separator (inner unit), which is cast into the concrete structures.

Description

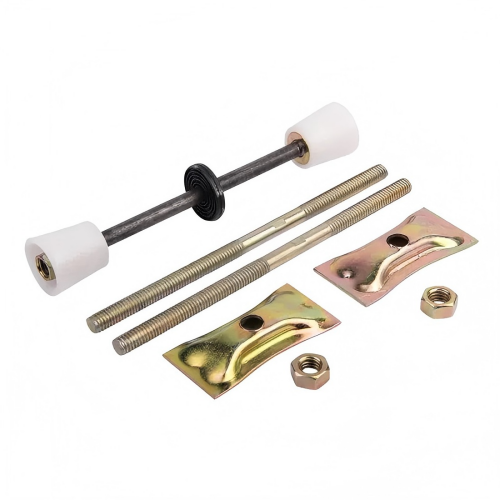

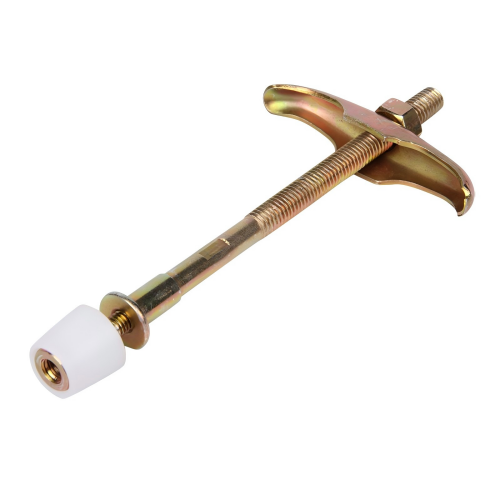

Three-stage water stop screw, Form Tie B Type, mainly consists of a form tie, an inner connect unit, a separator, rib washers, and Plastic B & D Cone.

Form Tie is widely used in construction sites, machinery manufacturing, industrial and mining railways, and aviation and shipbuilding.

B Form Tie Specification

Item Name	B Form Tie	B Inner Unit	Plastic B Cone	Rib Washer	Hex nut
Diameter	1/2"	B9,3/8"	3/8"	2.5mm/3.0mm Thickness	1/2"
Size	180mm,200mm, 210mm,250mm	Different Sizes available	B912,B916, B9*24	Different sizes available	/
Weight	145g,160g, 168g,197g	Up to Sizes	35g,38g,45g	Up to Sizes	20.5g
Finishing	Galvanizing	Self color	Galvanizing	Galvanizing or in Black	Galvanizing or in black
Packing	100pcs/carton	50pcs/bundle	400pcs/carton	100pcs/carton; 100pc/small bag	1000pcs/carton
