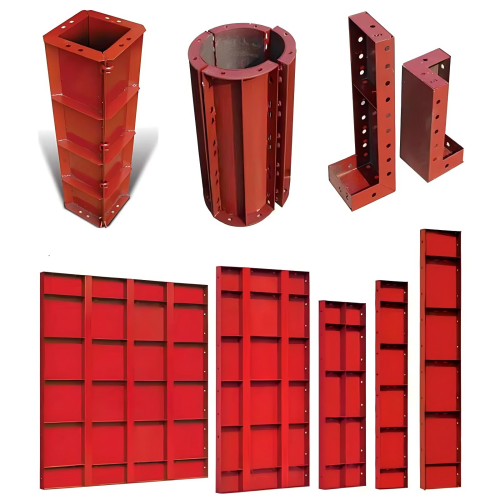

Steel Formwork

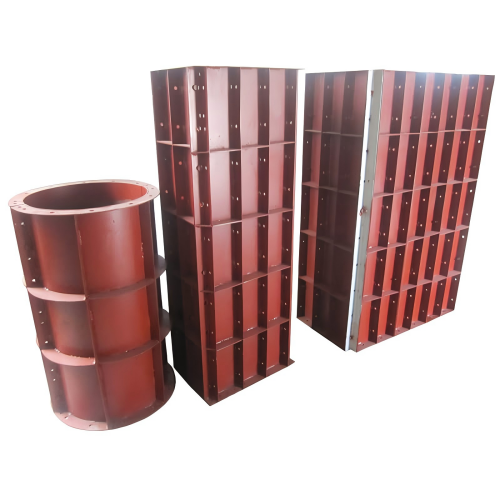

Different Types Of Concrete Metal Formwork

For different engineering purposes, we offer two types of steel formwork: steel flat formwork and steel circular column formwork. steel flat formwork supports the construction of floors and walls, while steel circular column formwork is designed for constructing load-bearing columns. In addition, we provide a full range of corner formwork to assist with wall construction and other building applications.

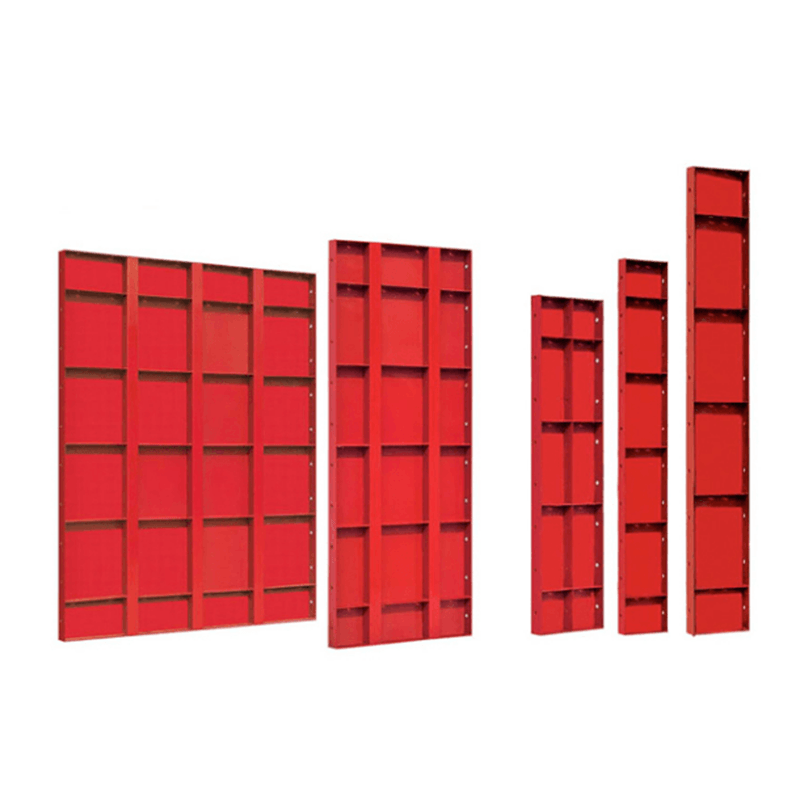

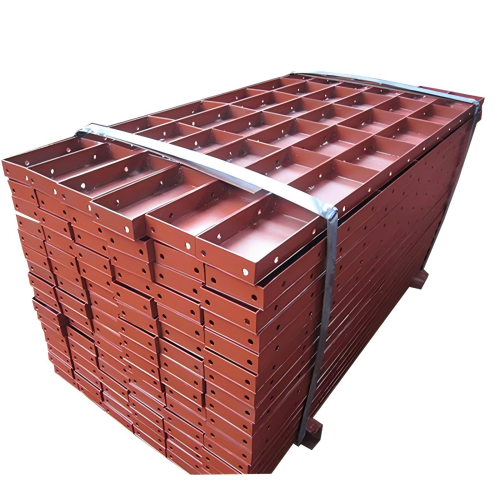

Steel flat formwork is a high-strength building formwork widely used in concrete structure construction for foundations, vertical walls and columns. It is mainly made of high-quality Q235 steel, with the characteristics of high bearing capacity, good wear resistance and high reuse rate.It can be manufactured in various sizes and specifications according to project requirements, and can adapt to different types of building structures, making it an ideal choice for improving construction efficiency and quality.

Specifications

Thickness : 3-5 mm

Height : 55mm

Width : 200mm, 300mm, 450mm, 500mm, 600mm

Length : 900mm, 1200mm, 1500mm, 1800mm

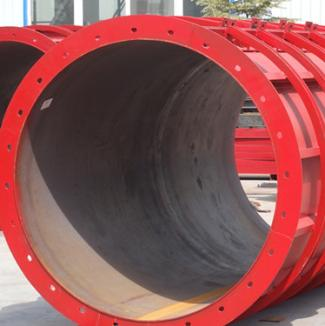

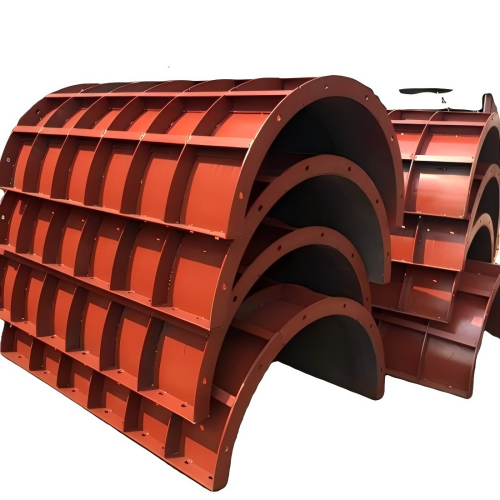

Steel circular column formwork is a formwork tool specifically designed for pouring concrete columns in building construction. It is mainly composed of steel plates and reinforcing ribs, offering high strength and durability, and can effectively support the weight of concrete, ensuring that the shape and size of the column meet the design requirements.Made of high-strength Q235 and Q345 steel, it boasts excellent load-bearing capacity and durability, and can meet the construction requirements of different round concrete project.

Height * Diameter(mm): 1500*400,1500*500,1000*500,1000*600

Steel circular column formwork is the most efficient option, delivering high-quality finished construction products and offering excellent reusability. Distinguishing between common and heavy-duty types of round steel formwork allows the product to better accommodate diverse construction requirements, and meets the selective needs of construction stakeholders seeking an efficient and economical solution.

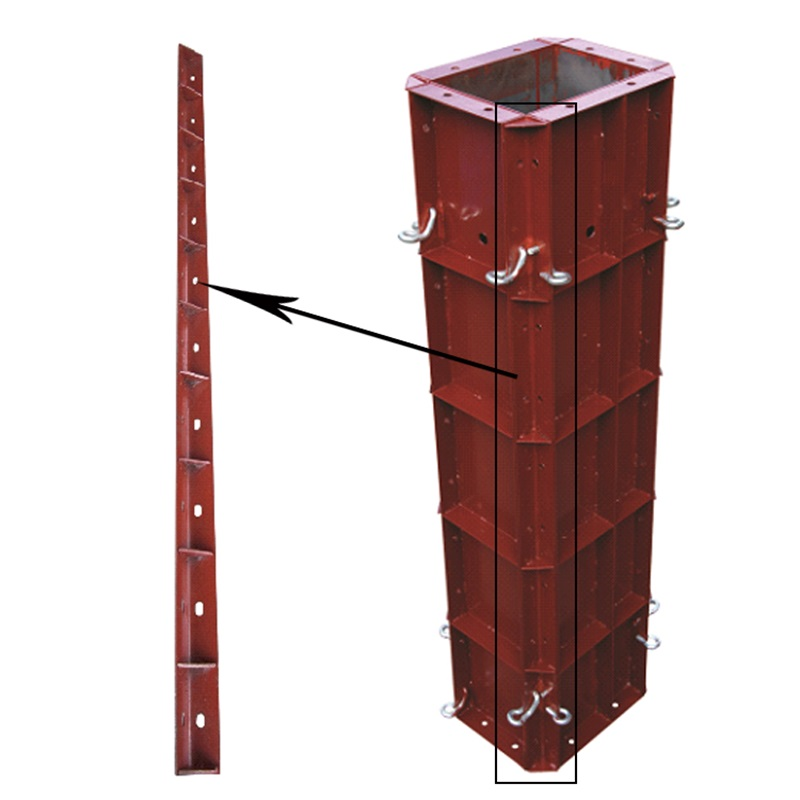

Corner Angles are designed to provide secure and stable connections at corners of steel formwork.

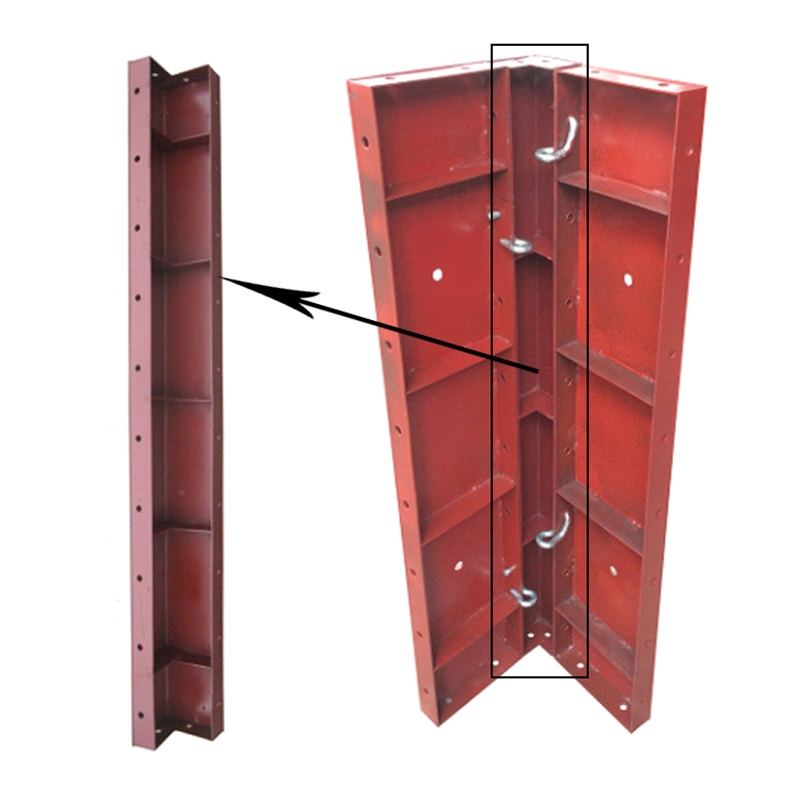

Internal corner formwork are used to align and secure standard panels on inside corners at a 90° angle.

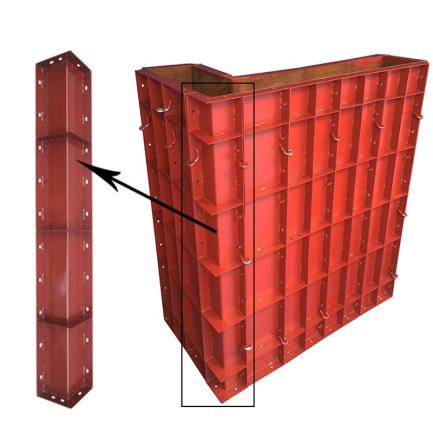

External Corner formwork and internal Corner formwork work the same way, and we have a wide range of sizes available.

Advantages

Steel formwork offers durability, precision, and reusability. Thanks to its strength, accuracy, and cost-effectiveness, it has become an ideal choice for construction projects.

• Durability: Steel formwork is highly durable and can withstand repeated uses, making it a cost-effective option for projects requiring numerous concrete pours.

• Smooth Finish: It provides a smooth, consistent surface finish for concrete, reducing the need for additional surface treatments.

• Strength: Steel formwork is capable of supporting heavy loads, making it suitable for large-scale construction projects.

• Accuracy: It ensures precise dimensions and shapes of the final concrete structure, reducing the need for post-casting corrections or adjustments.

• Environmental Sustainability: Reusable steel formwork reduces the demand for single-use formwork materials, thereby supporting environmental sustainability.
