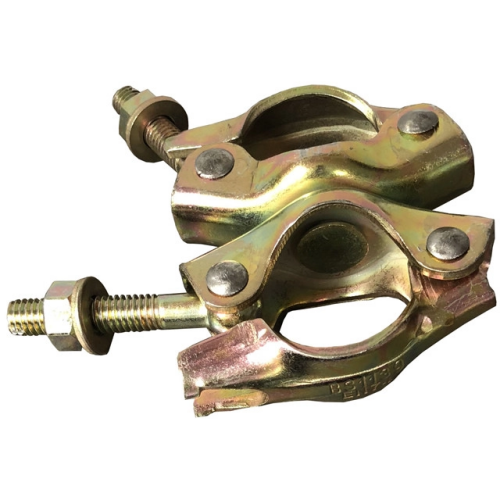

British Pressed Swivel Coupler

Pressed swivel couplers provide flexible 360° connections for scaffold tubes and fittings. Designed specifically for 48.3mm tubes, these scaffold couplers deliver strong, adjustable joints at any angle, making them ideal for diagonal bracing and reinforced structures. Manufactured from durable steel with a zinc coating, they fully meet EN74-1 Class A standards for reliable long-term scaffold use.
Material:Q235
Surface Treatment: Electro-galvanized, Hot Dip Galvanized
Dimensions:48.3mm * 48.3mm
Thickness:4.5mm
Weight:0.87kg
Standard:BS1139/EN74 Process Technology:Pressed
Package:Woven Bags,Wooden Pallets

Description

Pressed swivel couplers allow scaffolders to join scaffold tubes and fittings at any required angle. Their rotating head delivers a full 360° connection, which is ideal for diagonal bracing, bridging, and stabilising scaffolding frameworks. Widely used in temporary structures, this scaffold coupler enables quick, secure alignment of key components in both standard and custom scaffold layouts.

Manufactured from pressed steel, each coupler is zinc-plated for corrosion resistance and extended service life. Designed for 48.3mm tubes, it guarantees compatibility across all UK scaffold systems. It meets EN74-1 Class A standards, with 10kN slip resistance and 14kN failure load. Lightweight and versatile, this scaffold coupler enhances layout flexibility without compromising load-bearing security.
