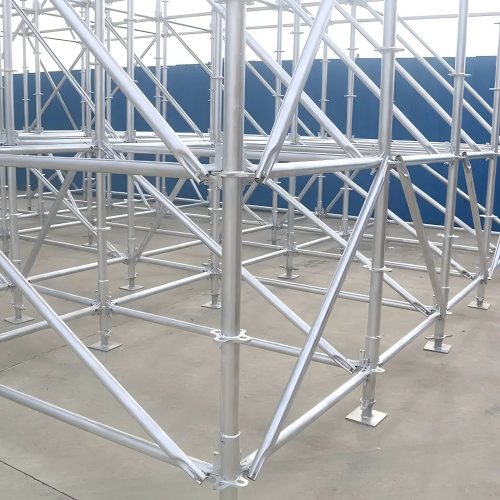

Ringlock System

The ringlock scaffolding system is mainly used to support bridge projects, tunnel projects, factory buildings, elevated water towers, power plants, oil refineries, and other special industrial facilities. It can also be applied in projects including overpasses, cross beams, storage shelves, large stages, and background frames.
It is available in M48 and M60 standards, with lengths ranging from 500mm to 3000mm, and its main materials are Q355 steel and Q235 steel.

Description

Applications

l The 48mm system is mainly applied to civil construction projects, operating platforms, etc. (construction projects with relatively small loads)

l The 60mm system is mainly applied to municipal engineering, cast-in-place beams for rail transit, swivel bridges, freight viaducts, etc. (construction projects with relatively large loads)

Advantages

l Strong load-bearing capacity: The load-bearing capacity of a single pole reaches up to 19 tons (60 series).

l Safe and reliable: The hot-dip galvanizing anti-corrosion process ensures a long service life.

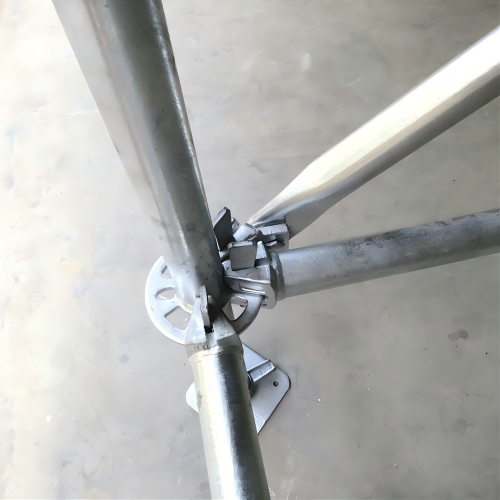

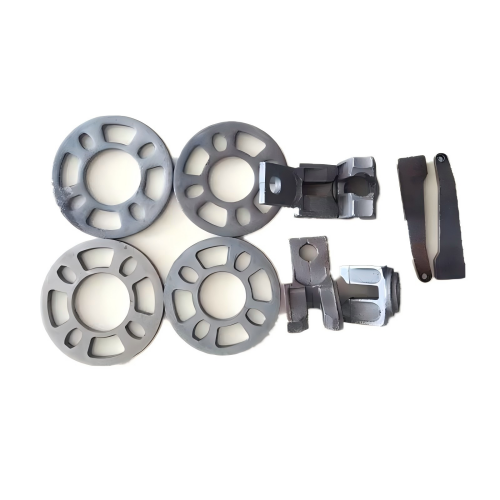

l Quick installation: The unique design of the disc self-locking connector improves construction efficiency.

l Cost-effective and practical: Lower steel consumption and lighter product weight reduce transportation and labor costs.

Specifications

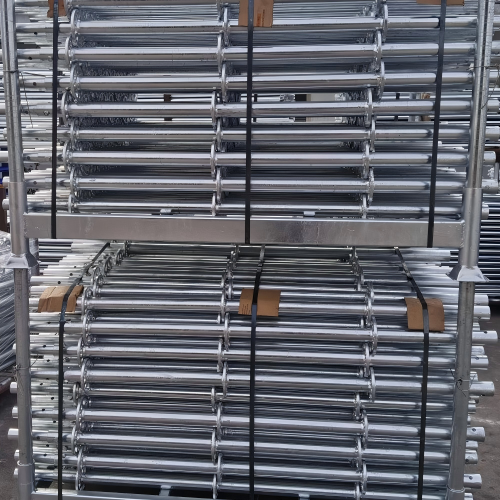

Standard
No.	Size(mm)	Material	Od.(mm)	Thickness(mm)
YT-S0.5	500	Q235/Q345	48.3	2.75/3.00/3.25
YT-S1.0	1000	Q235/Q345	48.3	2.75/3.00/3.25
YT-S1.5	1500	Q235/Q345	48.3	2.75/3.00/3.25
YT-S2.0	2000	Q235/Q345	48.3	2.75/3.00/3.25
YT-S2.5	2500	Q235/Q345	48.3	2.75/3.00/3.25
YT-S3.0	3000	Q235/Q345	48.3	2.75/3.00/3.25

Ledger
No.	Size(mm)	Material	Od.(mm)	Thickness(mm)
YT-L0.3	300	Q235/Q345	48.3	2.75/3.00/3.25
YT-L0.6	600	Q235/Q345	48.3	2.75/3.00/3.25
YT-L0.9	900	Q235/Q345	48.3	2.75/3.00/3.25
YT-L1.2	1200	Q235/Q345	48.3	2.75/3.00/3.25
YT-L1.5	1500	Q235/Q345	48.3	2.75/3.00/3.25
YT-L1.8	1800	Q235/Q345	48.3	2.75/3.00/3.25
YT-L2.1	2100	Q235/Q345	48.3	2.75/3.00/3.25

Brace
No.	Size(mm)	Material	Od.(mm)	Thickness(mm)
YT-XG0.6	600*1500	Q235/Q345	42/48.3	2.75/3.00/3.25
YT-XG0.9	900*1500	Q235/Q345	42/48.3	2.75/3.00/3.25
YT-XG1.2	1200*1500	Q235/Q345	42/48.3	2.75/3.00/3.25
YT-XG1.5	1500*1500	Q235/Q345	42/48.3	2.75/3.00/3.25
