  • Aluminium formwork is a new generation of construction formwork developed after timber formwork and steel formwork. Made primarily from aluminium alloy profiles through machining, welding and other processes, it is suitable for cast-in-place concrete structures in residential buildings, and offers advantages including shortened construction periods and the elimination of plastering requirements.
  • Aluminium shuttering can be freely assembled to suit different structures and sizes. Its design and application mark an innovation in formwork technology.

Application

Aluminium formwork is widely applicable to the construction of residential units and mass housing projects. It features fast construction, simple operation, strong adaptability and high cost-effectiveness, and delivers overall high-quality work that requires minimal maintenance, making it an ideal option when durability is the primary consideration.


Advantages

  • Increased Efficiency.Aluminum formwork helps improve the efficiency of construction projects, as it is a reusable system designed for multiple applications. This reduces the amount of waste generated at construction sites, which in turn helps cut project costs. Additionally, aluminum formwork is fast and simple to assemble, helping save time on construction projects.

  • Reduced Costs.Since aluminum formwork is a reusable construction system, it helps lower the overall cost of construction projects. Additionally, aluminum formwork is typically lighter than other types of formwork, which contributes to reduced transportation costs.

  • Increased Safety.Aluminum formwork can also help improve construction site safety, as it is a non-combustible material. This means construction sites using aluminum formwork face a lower risk of fire. Additionally, aluminum formwork is non-toxic, which helps create a safer working environment for workers.

  • Improved Quality.Another key advantage of using aluminum formwork is that it helps improve the quality of construction projects. This is because aluminum formwork produces a uniformly smooth finished surface that is ready for direct painting or coating. Additionally, aluminum formwork is naturally resistant to rot and termite damage, which helps extend the longevity of buildings.

  • Enhanced Sustainability.Aluminum formwork is also an environmentally friendly option, as it is 100% recyclable. This means construction projects that use aluminum formwork can reduce their overall carbon footprint. Additionally, manufacturing formwork from recycled aluminum cuts both production costs and environmental impact.


Specifcation

Item

Specifcation

Aluminium Alloy (6061-T6)

Poisson's ratio (Va)

0.3

Density (ρ)

2.7g/cm³

Elasticity modulus (Ea)

70000N/mm²

Yield strength (Fa)

200 N/mm²

Shear strength (Fva)

115N/mm²

Composition

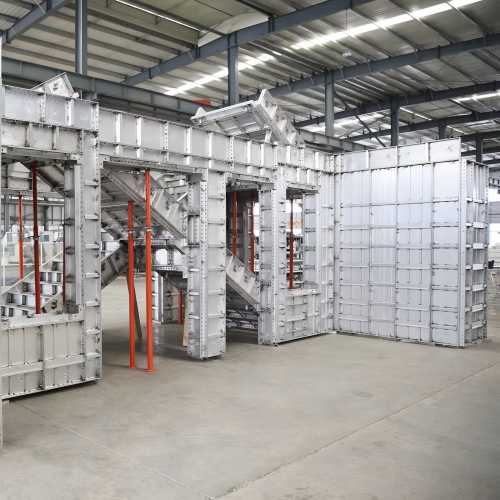

Inner & Outer wall paneland corner panel

Beam bottom & side panel and corner panel

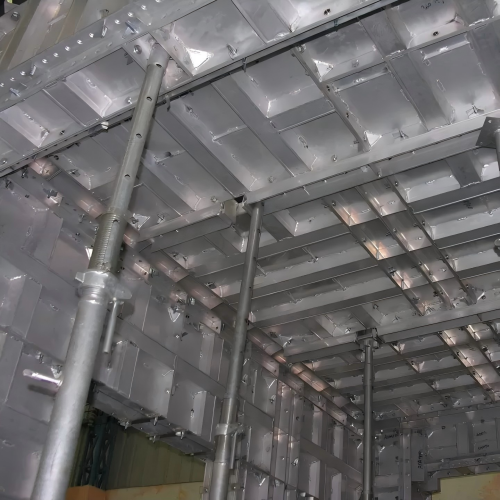

Slab panel & prop head and corner panel

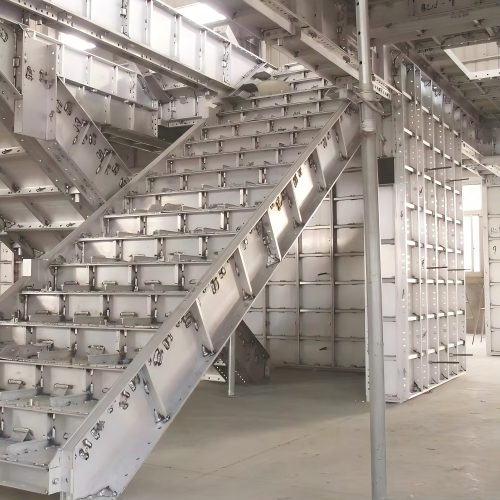

Staircase panel

Alloy Temper

6061-T6

Material Type

Complete extrusion

Main Welding Type

Friction Stir Welding

Thickness of Panel

4mm

Thickness of Frame

8mm

Height of Frame

63.5 / 65mm

Standard Wall Panel Width

50mm to 600mm

Standard Wall Panel Height

2,400mm

Standard Slab Panel Size

600mm X 1,200mm

Weight of Aluminium Panel

25kg/sq.m

Standard Prop

Adjustable steel prop
